Products & Capabilities

Precision Mould Design & Fabrication

From concept and design through to finished tooling — we deliver precision-engineered moulds for automotive, medical, electronics, and home appliance manufacturers.

How We Work

Our Mould Making Process

Design & Engineering

Collaborative design review and DFM analysis. CAD/CAM toolpath generation and mould flow simulation to optimise mould geometry before fabrication begins.

Mould Base Preparation

Sourcing and preparation of mould base steel from trusted suppliers. Precision machining of cavity and core blocks to exact dimensional specifications.

CNC Machining

High-speed CNC milling and turning of mould components. Tight tolerances maintained throughout to ensure accurate cavity and core profiles.

EDM, Wire Cutting, Grinding & Milling Machining

Comprehensive precision machining services including CNC Milling, Surface Grinding, EDM, and Wire Cutting to manufacture high-precision mould components with tight tolerances and excellent quality.

Fitting & Assembly

Precision fitting of all mould components — cavity, core, slides, lifters, cooling circuits, and ejector systems — assembled by experienced toolmakers.

Trial & Delivery

Mould trial run, dimensional verification, and full inspection before delivery. Documentation package included with every mould.

Services

Core Capabilities

Mould & Tooling Fabrication

Precision machining of mould cavities, cores, and tooling components using high-grade tool steels. We work with customer-supplied or purchased mould bases and machine all components to exact specifications.

P20, H13, S136 tool steel
Single & multi-cavity moulds
Hot runner & cold runner
Slides & lifter systems
Mould life: 500K+ shots

Mould Design

Full in-house mould design capability using CAD/CAM software. DFM analysis, mould flow simulation, and gate/runner optimisation before any steel is cut.

CAD/CAM design
Mould flow simulation
DFM analysis
Gate & runner optimisation
2D & 3D drawings provided

CNC & EDM Machining

High-speed CNC milling, turning, and EDM/wire-cut for complex mould components. Capable of fine surface finishes and intricate cavity profiles.

High-speed CNC milling

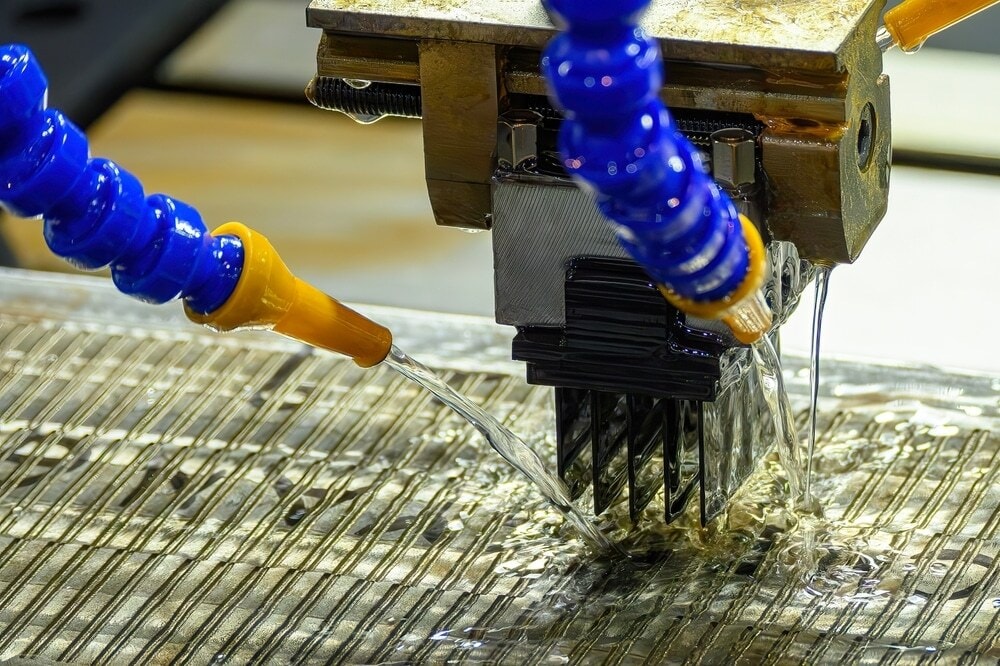

Wire-cut EDM
Sinker EDM
Surface grinding
Fine surface finishing

Quality & Inspection

Rigorous dimensional inspection at every stage of mould fabrication. First article inspection and full documentation before delivery.

Dimensional inspection
First article inspection
Mould trial verification
Full documentation package
ISO 9001 quality system

Tooling & Mould Fabrication

Quality Control & Inspection

Our Machinery

Production Equipment

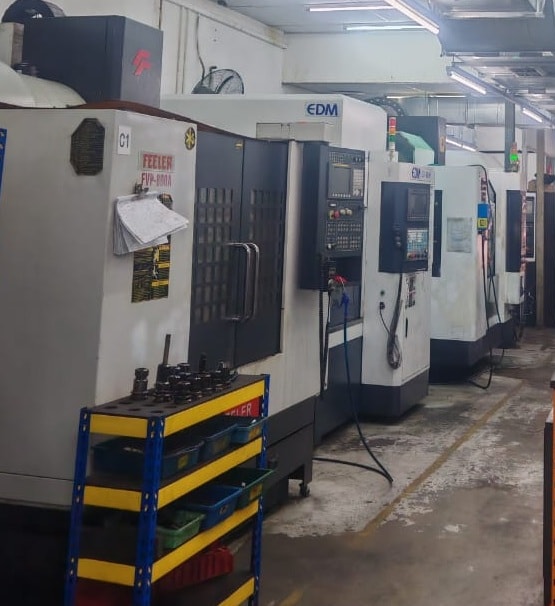

Zhang Hong Moulding has imported high precision tooling machines from Taiwan and Japan, including High Speed CNC, EDM, Wire Cutting, Surface Grinder, Lathe, and Laser Welder.
